RC-4 Water Well Rig

· Capable of a maximum diameter drilling hole of 400mm

· Capable of a maximum drilling depth of up 400 meters

· Capable of utilizing 3 drilling methods using Drilling Fluids (Mud), Air Drilling and DTH Drilling

· Maximum Hoist capacity of 200 Kn

· Maximum spindle torque of 11 000 Nm

· Capable of using 2” – 5” Drill Rods

· Operates using Full Hydraulic Drive for a smoother and more reliable Drilling procedure

· Hydraulic System using the highest quality components

· Equipped with a reliable, easy to operate, Height Adjustable rod clamping system

· Equipped with a faster rod feed and lifting system to reduce drilling time

· Reliable and strong Foldable Mast

· High speed manoeuvrability

· Easy Set Up

FEATURES AND BENEFITS

Specifications

Details

Engine Model

Engine Power

Drilling Capacity

Mase Height (full extended)

Power Head Stroke

Pullback Force of Power Head

Trust Force of Power Head

Spindle RPM

Spindle Torque

Dimension of the rig

Weight

Mud Pump (Option)

Data

Cummins 6BTA5.9

132 KW

3-1/3 inch rod -- 400 mts

10.9 mts

7 100 mm

200 KN

100 KN

120 RPM

11 000 Nm

6 600 x 2 200 x 2 900 mm

13 5000

850 LPM 4 Mpa

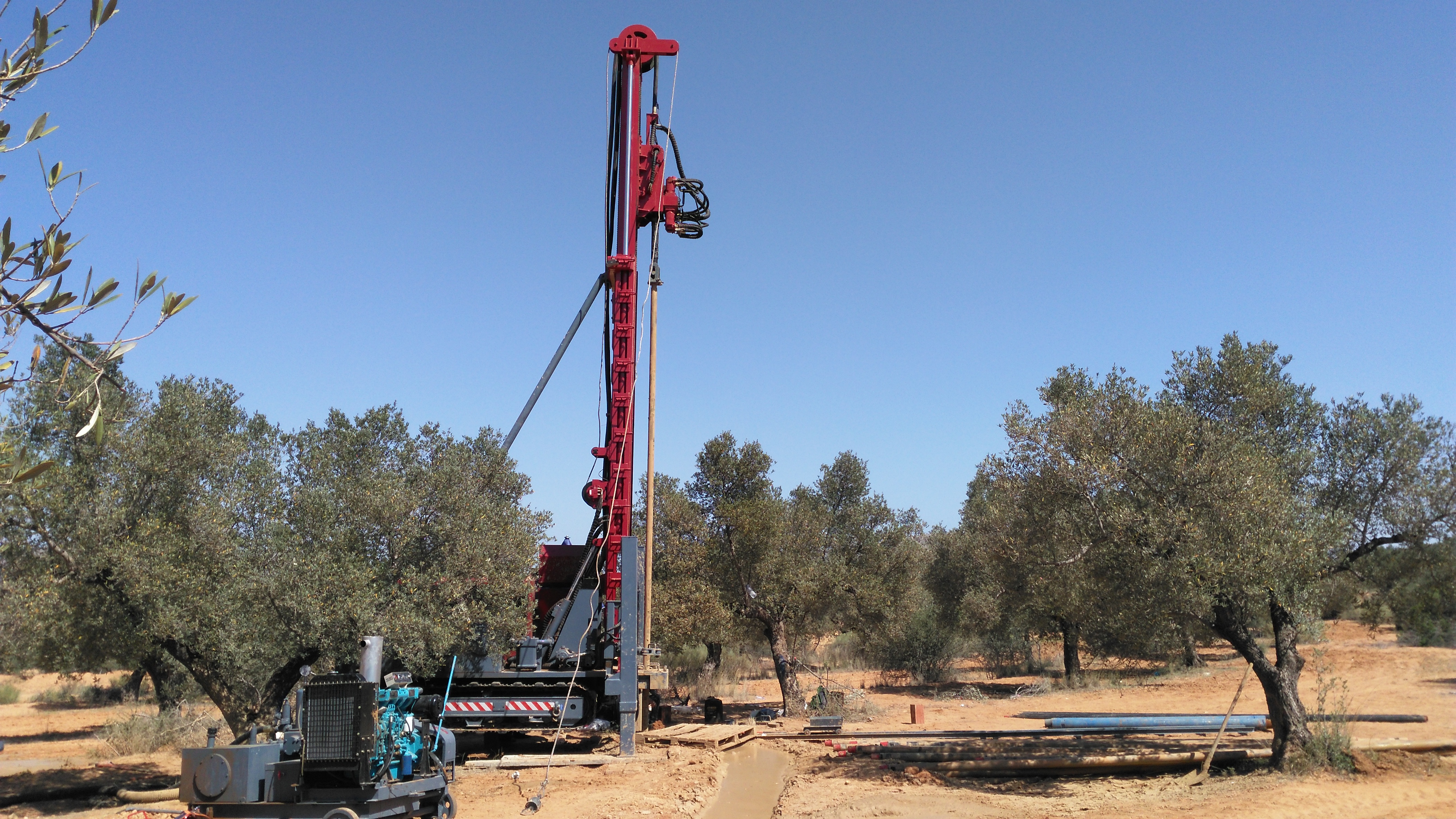

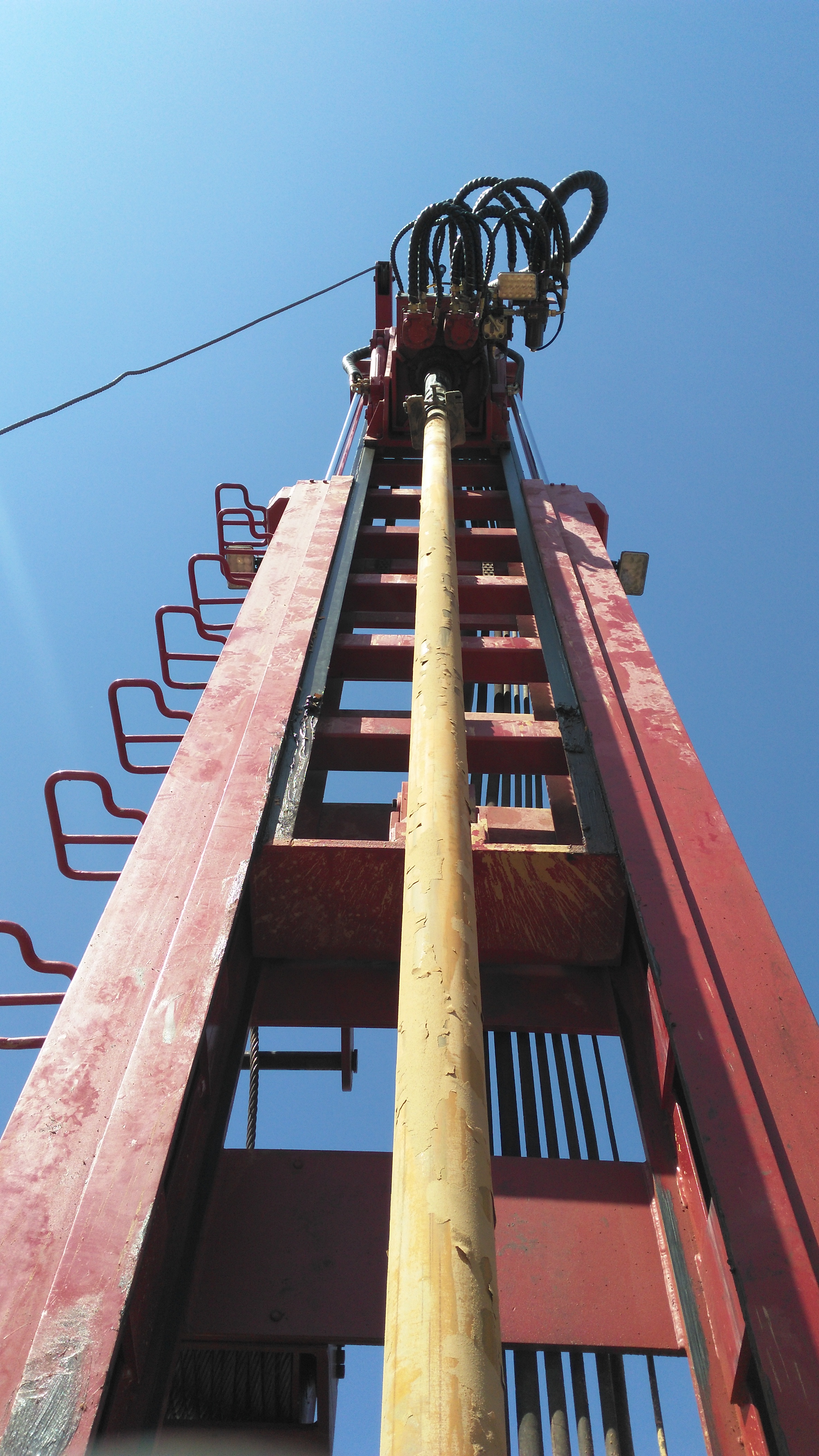

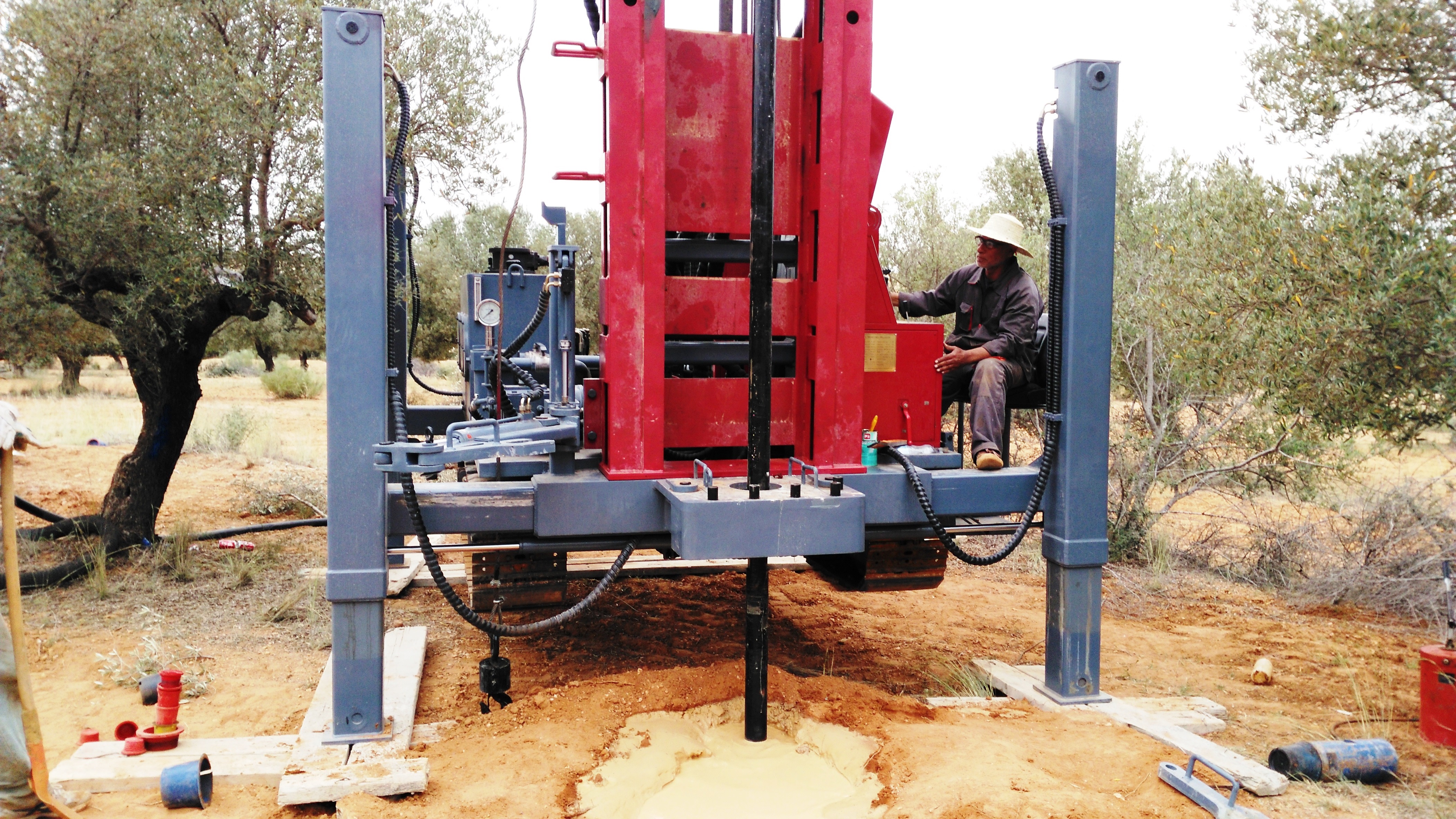

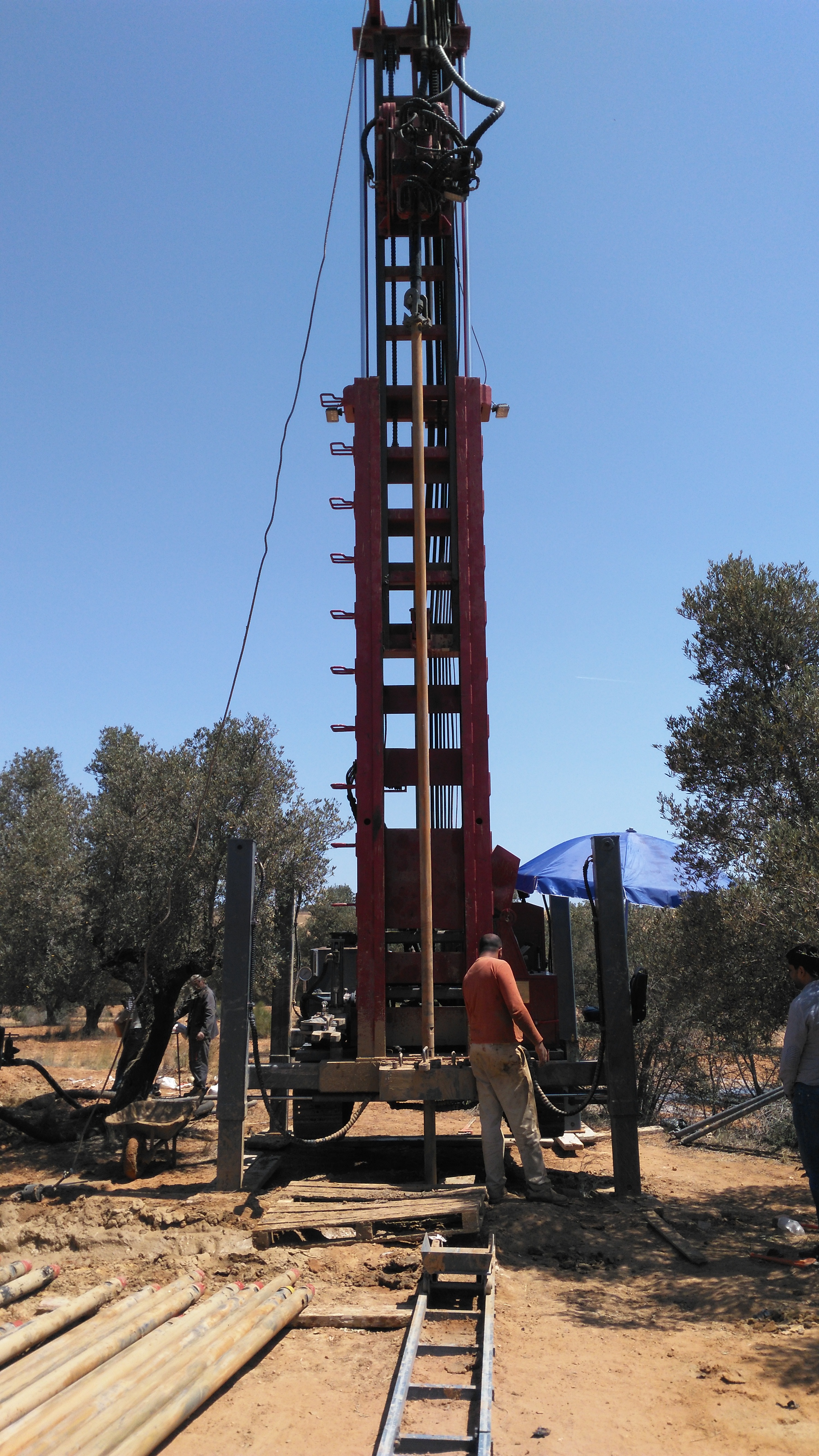

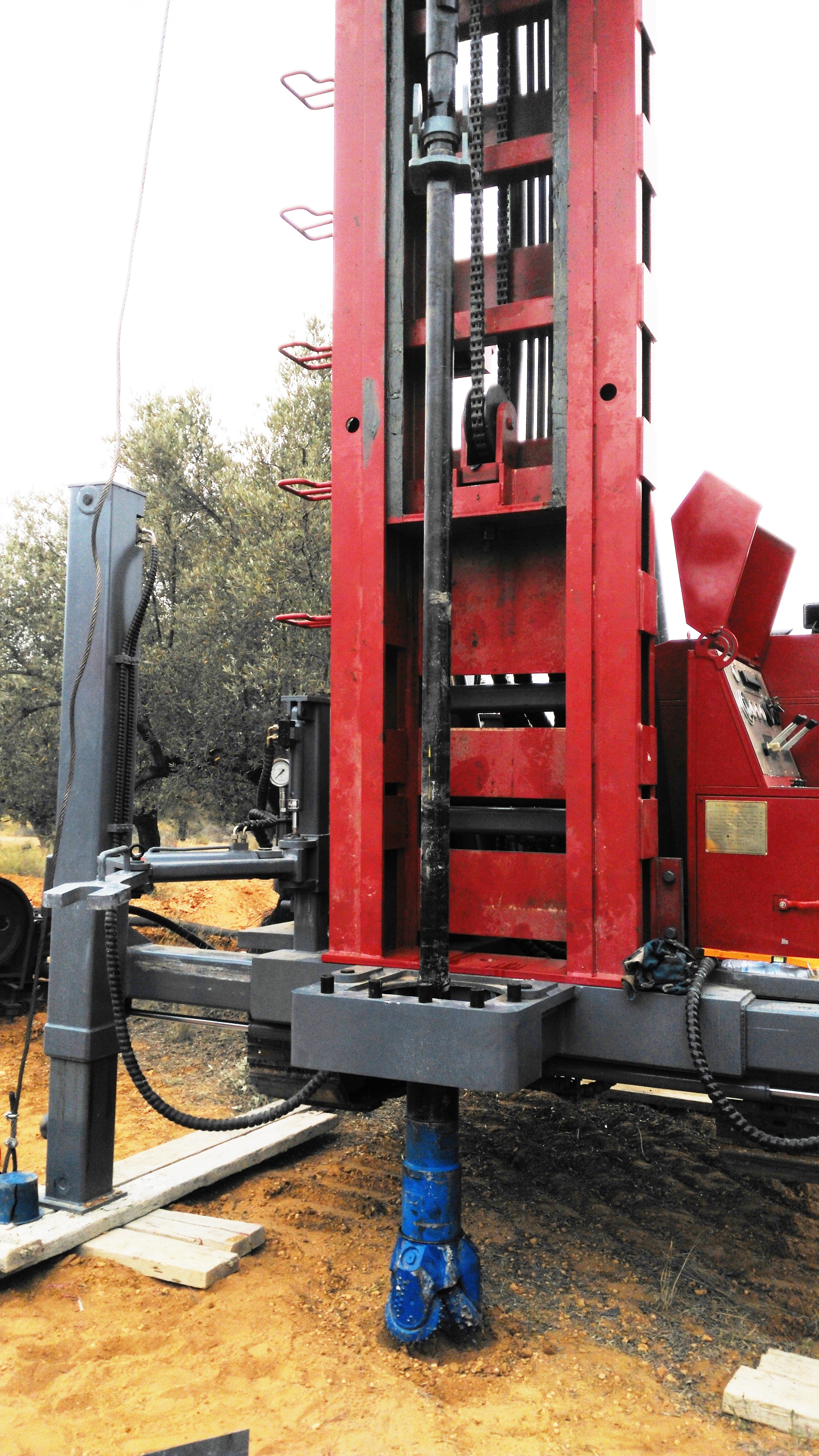

Project Case

Customer Feedback

FAQs

What types of drilling rigs does FORWARD manufacture?

FORWARD specializes in the design and manufacture of coring drilling rigs and water well drilling rigs. Our products are widely used in mineral exploration, geological investigation, groundwater development, and engineering drilling projects. We offer both standard models and customized solutions to meet different project requirements.

In which regions are FORWARD drilling rigs used?

FORWARD drilling rigs are operating in more than 60 countries across Asia, Europe, Africa, the Middle East, and the Americas. Our equipment has been successfully used in diverse environments, including deserts, tropical regions, high altitudes, and Arctic conditions, demonstrating strong adaptability and reliability.

Can FORWARD provide customized drilling solutions?

Yes. FORWARD offers customized rig configurations based on customer needs, including drilling depth, hole diameter, power systems, environmental conditions, and local regulations. Our engineering team works closely with clients to ensure the equipment is well-suited to their specific projects.

How does FORWARD ensure product quality and reliability?

FORWARD applies strict quality control throughout design, manufacturing, and testing. Key components are sourced from internationally recognized suppliers, and each drilling rig undergoes comprehensive factory testing before delivery to ensure stable performance, safety, and long service life.

What after-sales services does FORWARD provide?

FORWARD provides global after-sales support, including technical training, spare parts supply, remote troubleshooting, and on-site service when required. Our service team is committed to fast response times to minimize downtime and support continuous operation.

How can customers obtain technical information or a quotation?

Customers can contact FORWARD via our website, email, or authorized distributors to request technical specifications, project consultation, or quotations. Our sales and technical teams will respond promptly with professional support and detailed information.
