RX250V Top Drive Rig

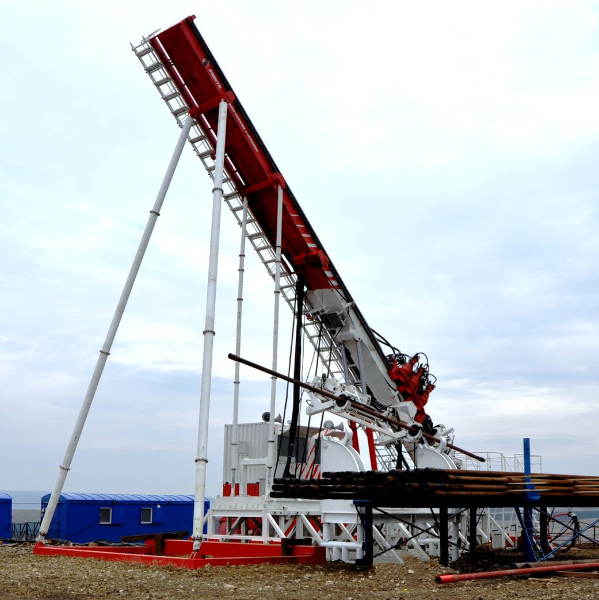

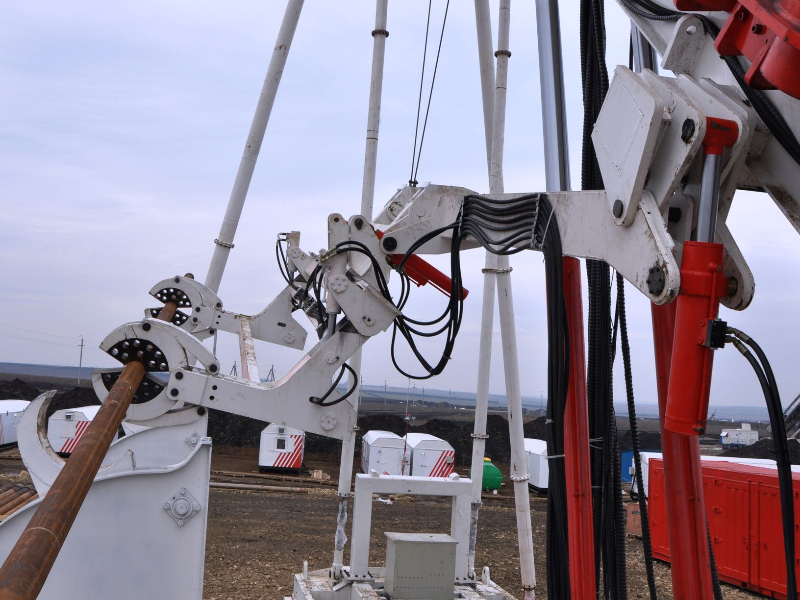

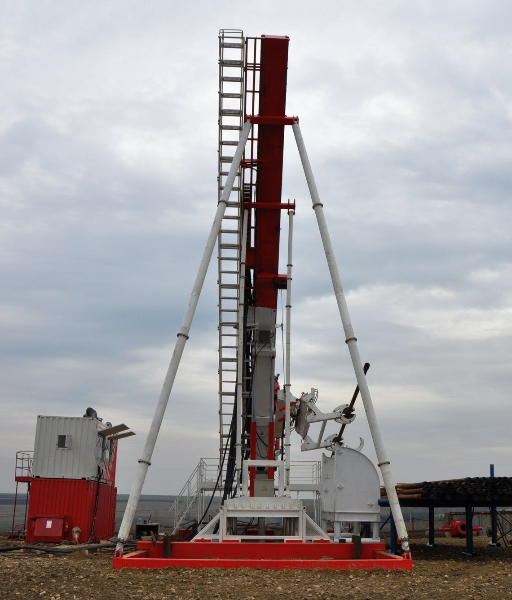

The maximum feeding / push-pull power of the RX250×900V multi-functional rig is 250 tons, which can drill inclined and straight holes with drilling angle from 12ºto 90º. This rig has foundation base, which is easy to be installed. Meanwhile, the main machine has the robot hand changing the drill rods automatically.

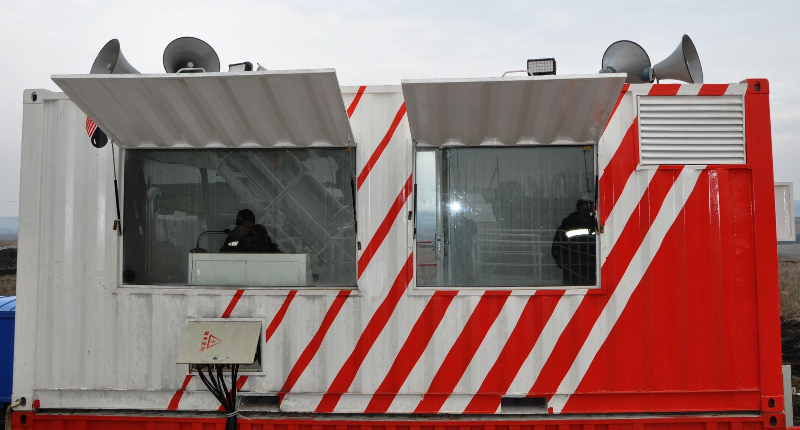

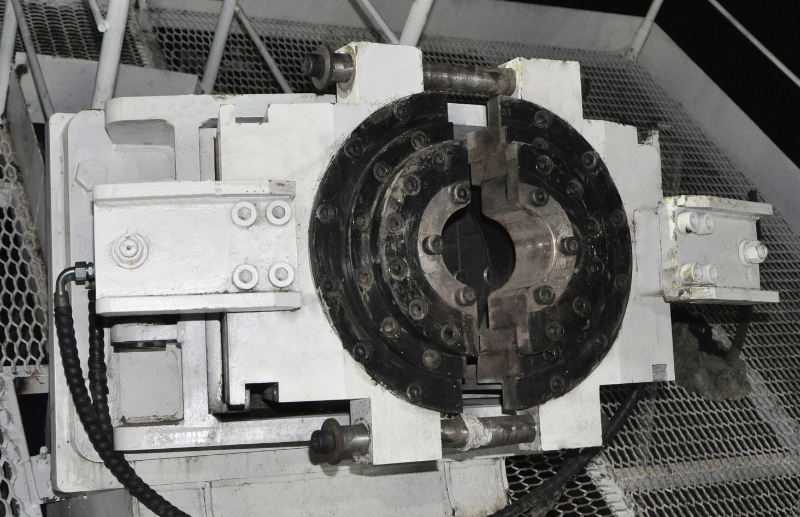

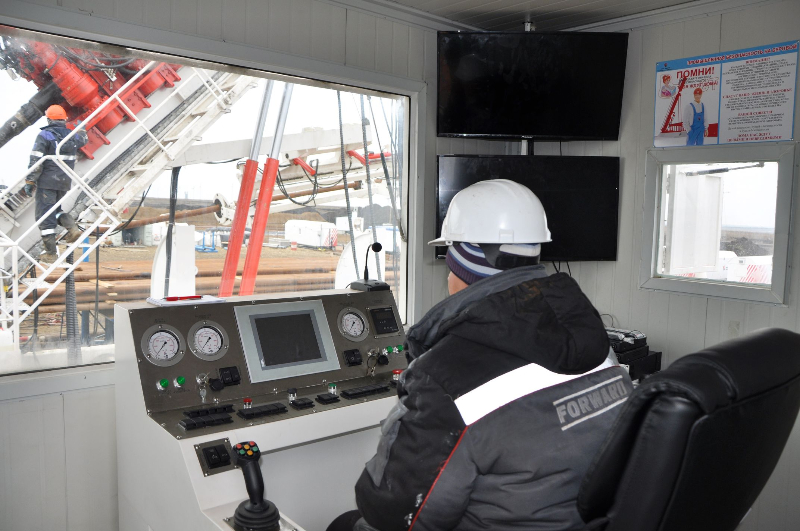

The whole drilling rig adopts split type layout, which is divided into: base, main machine, robot hand, power station, wellhead clamp holder, control chamber.

RX250（made by forward 20150501） - English.pdf

FEATURES AND BENEFITS

Foundation Base (on the top of which displays the rig), composed by two parts, length and width, respectively: 6 m and 2.5 m

Side Ramp (which is installed on the side of the base), composed by four parts, with the length of 6m and the angle of 45º.

Back and Forth Riveting Plate, composed by two parts, with the length of 7m, see the following picture: (the open file distance from the middle is 300mm)

Specifications

Details

Gearing Mode

Maximum length of the drill rod / casing

Maximum Feed/Pull power

Movement Speed of Power Head

Drill angle

Dimension

Weight of main rig

Data

Gear Rack

12.5 m

2 550 KN

0 - 27 m/min

12-90°

18 500 x 2 500 x 3 200mm

48 000 Kgs
