C8 CORING RIG

FORWARD'S C8 is a very strong crawler mounted rig with all the user-friendly functions drillers are looking for and all at their fingertips. The rigs are built under strict quality control protocols and are rigorously tested before dispatch.

The C8 has been built with reliability in mind and is assembled using only the very best first-world components such as Danfoss pumps 、valves, hydraulic motors, Manuli Hoses and Cummins engines.

The C8 has the 3 speeds gear box provides free combination of torque and rotation speed.

The C8 equipped PQ chuck and 4700 mm stroke of rotation facilitates handling of rods of 4.5 meters length.

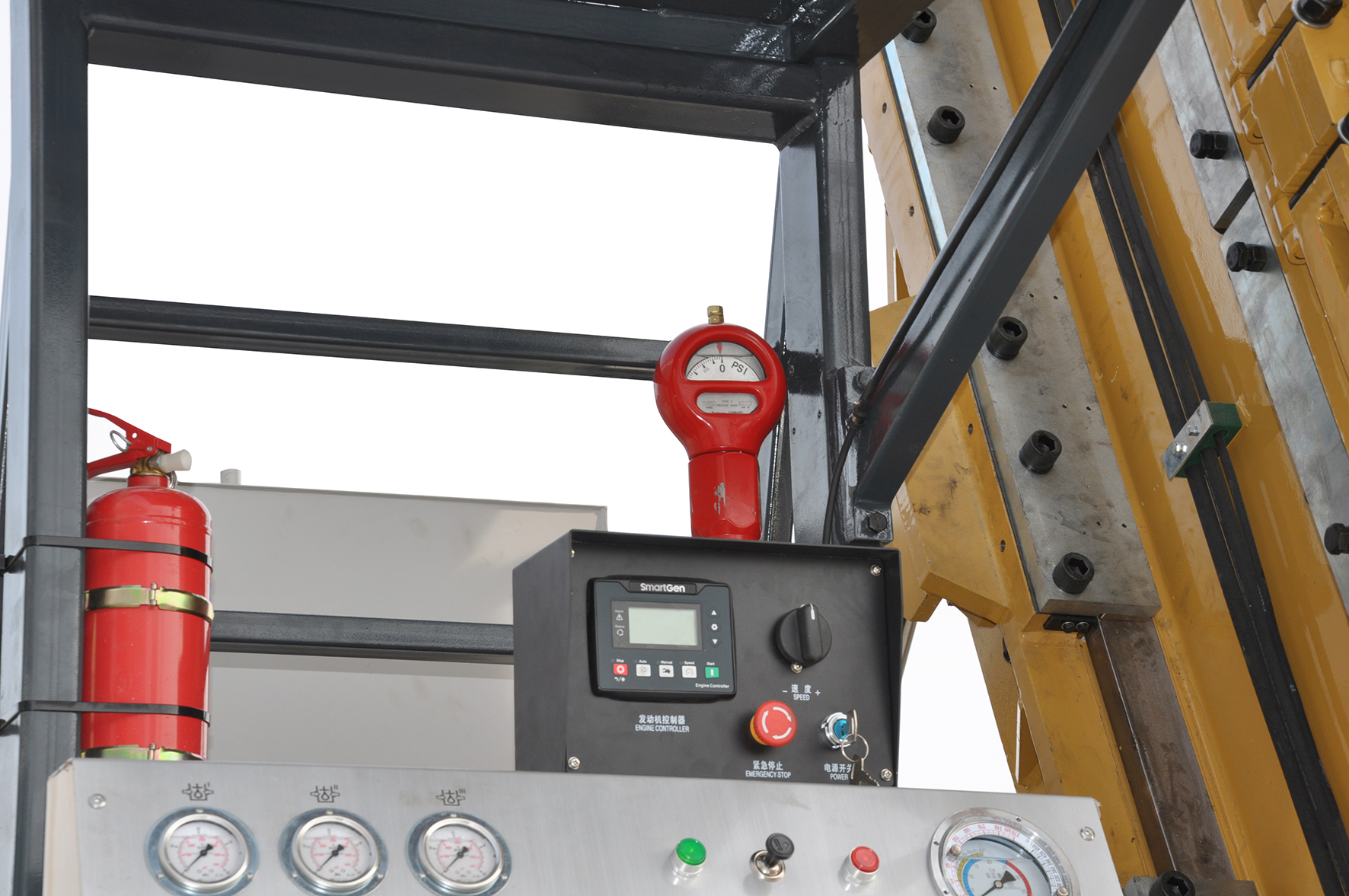

The foldable mast and lifting supports ensure easy operation. The modern design with safety features such as safety guards and emergency stop buttons makes the rig user-friendly and safe to operate.

FEATURES AND BENEFITS

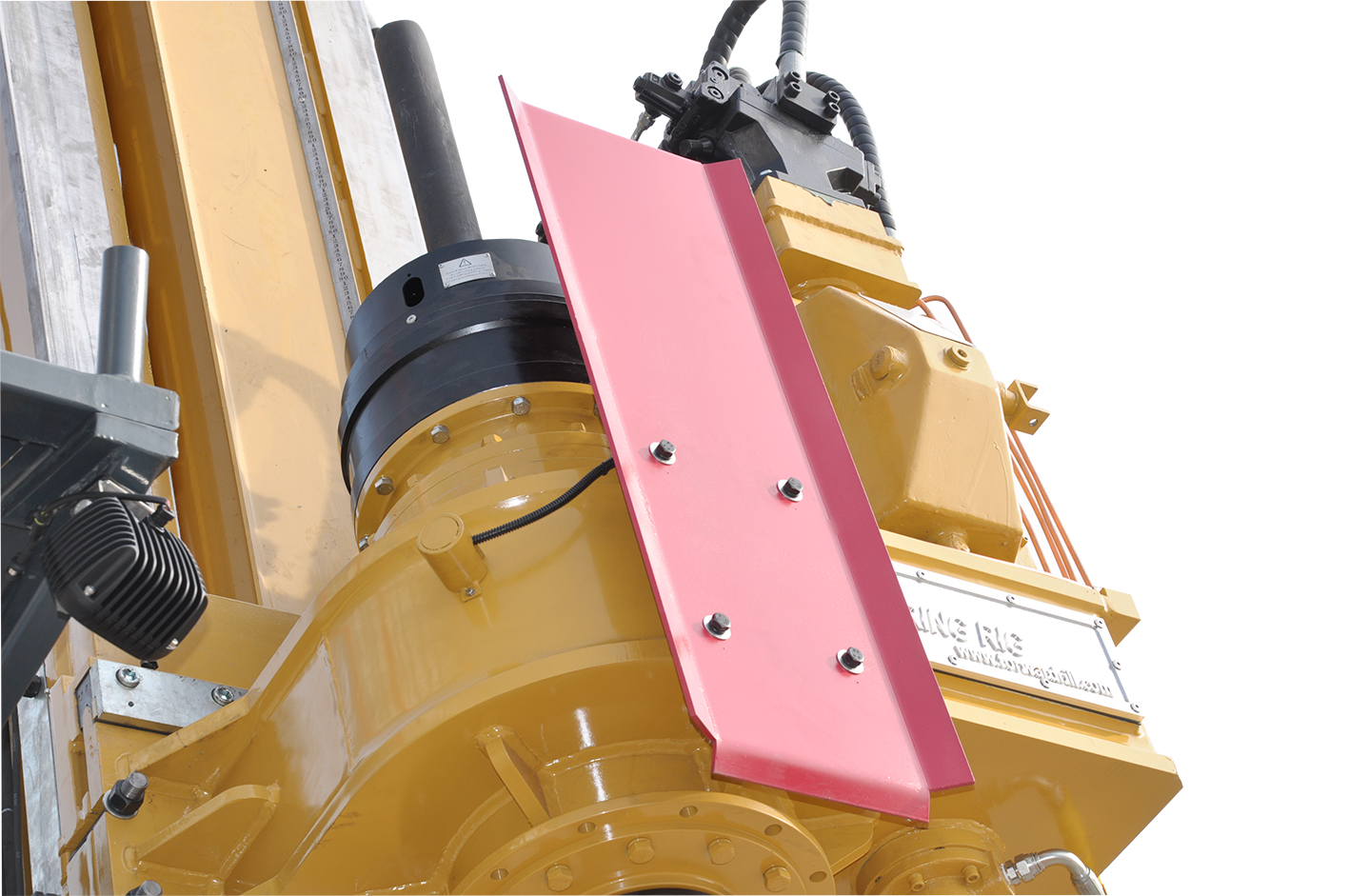

The 3 Speed Rotation Head can accept all sizes of coring rods up to PQ

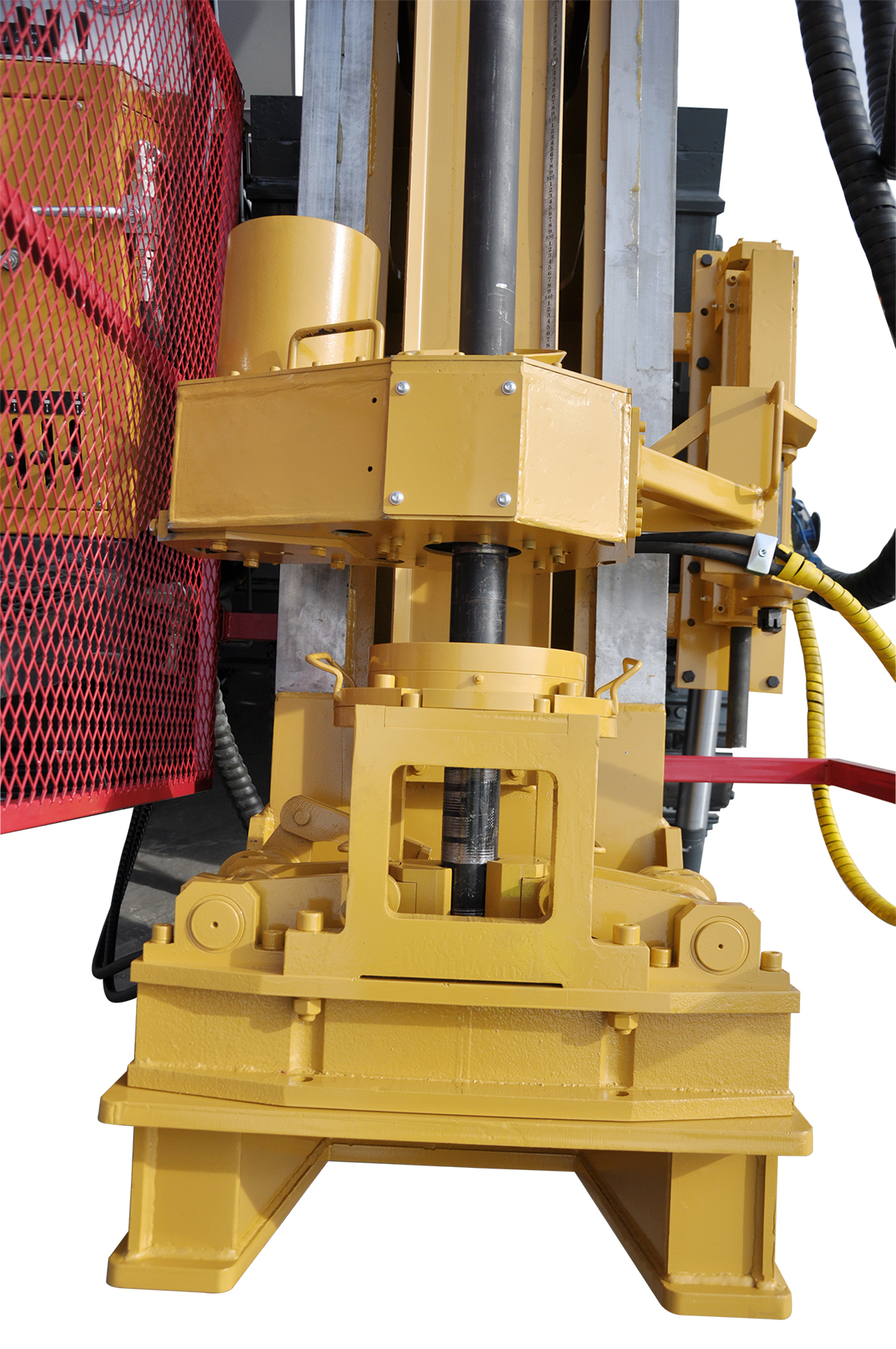

Patented chuck jaws and hydraulic opening/spring close function insures a fail-safe operation.

The Rotation Head is connected direct to the hydraulic feed cylinder which simplifies the whole mast design and minimizes maintenance.

The Rotation Head also slides off to the side and opens the whole mast up to run casing or pull tubes etc.

The Rigid design of the mast provides superior performance and reliability even under the toughest geological conditions.

The Mast raise cylinders are equipped with balancing valves to increase safety.

The folded mast allows the rig to be transported on short trailers or in a shipping container.

Both the Rotation and Fine Feed controls are fitted with friction dampeners with positive and easy to find neutral positions.

The steel hood provides adequate protection from the elements yet opens up for ease of maintenance.

All the hydraulic pumps are genuine Variable Displacement, Pressure Compensated, Load Sensed Sauer Danfoss Piston pumps.

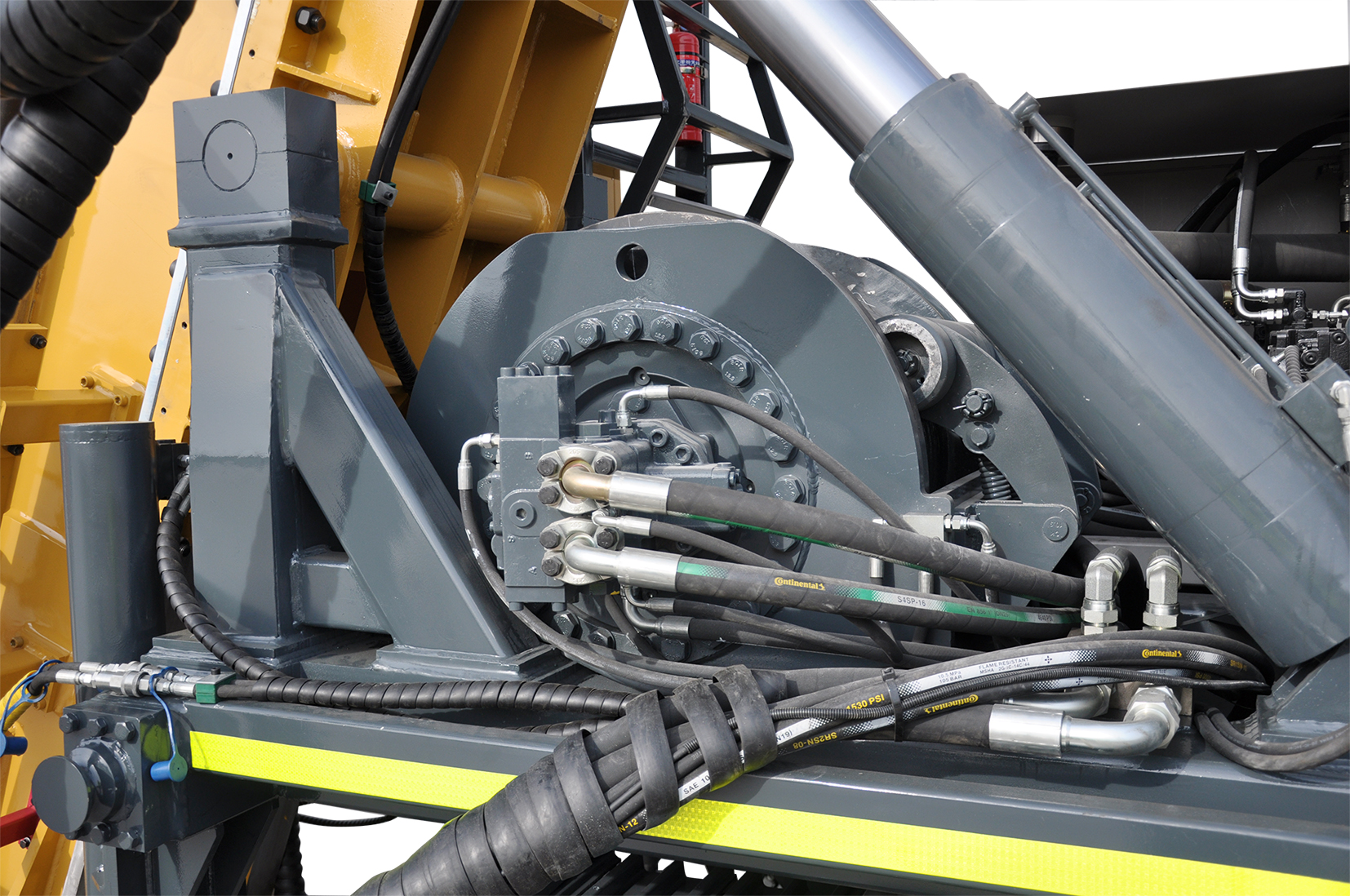

The Haul Winch is securely mounted central to the rig chassis

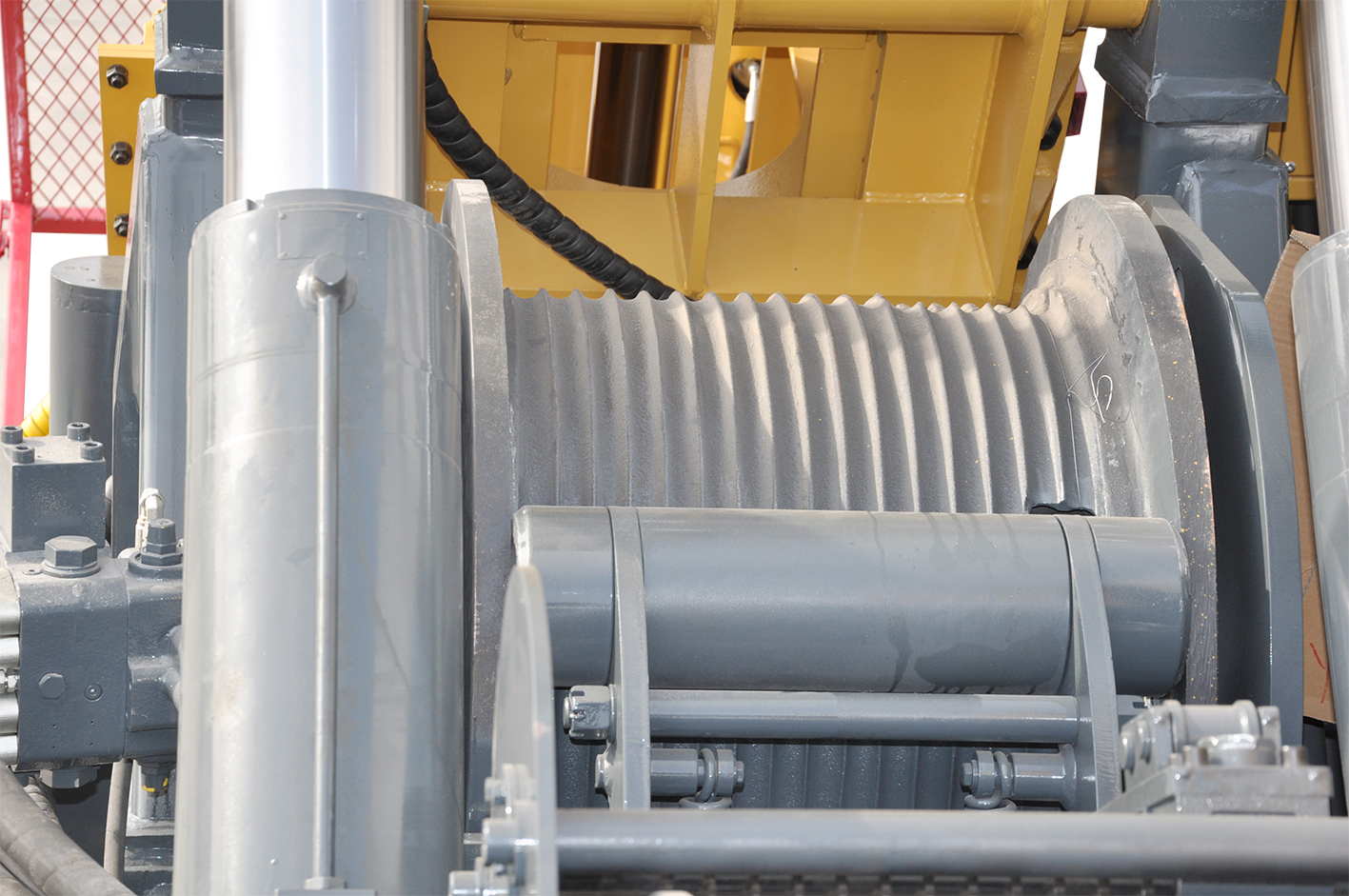

The Wireline Winch has auto spooling and 4000 meters capacity.

The Crawler chassis is manufactured in house and has quality Korean sourced hydraulic drive motors.

Specifications

Details

Drill Capacity

Diesel Engine

Torque and RPM Ratings

Rotation Unit

Mechanical Transmission

Hydraulic Chuck

Routation Unit Lubrication

Rotation Feed Stroke

Feed Pull

Feed Trust

Drilling Angle

Hook load for Main Line Hosit

Hook Load for Line Hoist

Fuel Tank Capacity

Fluid Circulation Pump

Weight

Dimension in Transport

Data

NQ -- 3000 mts; HQ -- 2400 mts; PQ -- 1750 mts

Cummins QSL8.9-C360, 268 Kw

7 200 Nm, 3 shifts, 0 - 1280 RPM

2 sets Danfoss motor drived, Stand PQ - Hollow Spindle

Funk 3 Speed

Disc spring closed, hydraulic open, Axial holding capacity 55 klbf.

Focrce fed to the bearing and oil bath for gears

4 700 mm

300 000 N

155 000 N

30º off horizontal to 90º vertical down

250 KN

45 KN

300 L

320 LPM@1450 psi

25 600 Kg

8 400 ×2 500 × 2 700 mm
