RX66x350 HDD RIG

FORWARD RX66×350 НDD rig:

 WEICHAI-STEYR diesel engine with power of 243 kW.

 Unique system of rotation and thrust-pullback provides trust-pullback force up to 660 kN and max torque output 35 000 Nm.

 Maximum rotation speed 160 rpm and thrust-pullback speed 24 m/min guarantee the high efficiency of operation.

 Control joysticks of rotation and thrust-pullback system and Italian electromagnetic valves improve the reliability of the rig.

 Drill rods supply system increases productivity.

 Maximum elevation angle 25 ° allows the rig to drive on any truck and to overcome obstacles on the construction site.

 Control cabin makes the operator’s work comfortable, there is an air condition and heating system inside. Video monitor, recording device and exterior cameras are also provided.

 Steel track increase the reliability of the equipment.

 Complex preheating system of engine, engine air manifold and hydraulic oil.

FEATURES AND BENEFITS

Specifications

Details

Engine Model

Engine Power

Rotation RPM

Spindle Torque

Trust Force of Rotation Unit

Pullback Force of Rotation Unit

Rod

Dimension of the main rig

Weight of the Main Rig

Data

Weichai-Steyr

243 KW

0 - 160 RPM

35 000 Nm

680 KN

Dia.102mm x 4500mm

9 000 x 2 500 x 2 800 mm

18 000 Kgs

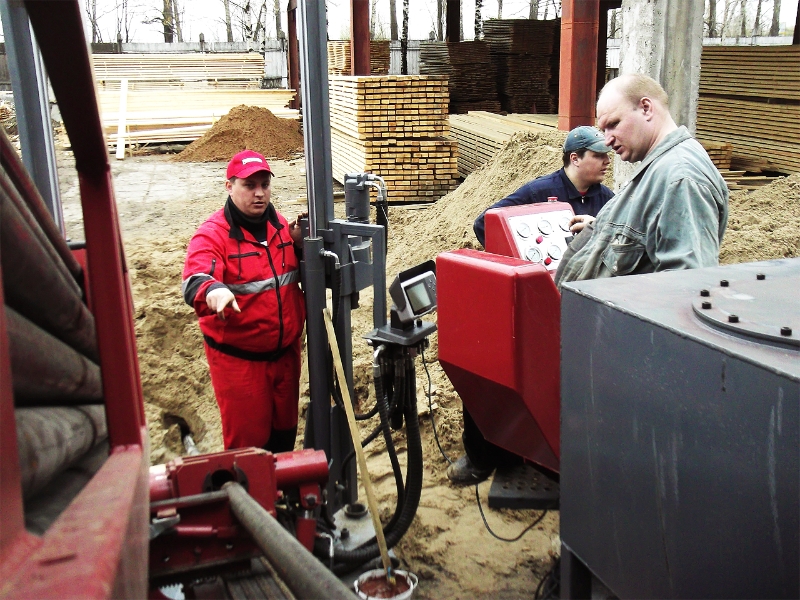

Project Case

Customer Feedback

FAQs

What types of drilling rigs does FORWARD manufacture?

FORWARD specializes in the design and manufacture of coring drilling rigs and water well drilling rigs. Our products are widely used in mineral exploration, geological investigation, groundwater development, and engineering drilling projects. We offer both standard models and customized solutions to meet different project requirements.

In which regions are FORWARD drilling rigs used?

FORWARD drilling rigs are operating in more than 60 countries across Asia, Europe, Africa, the Middle East, and the Americas. Our equipment has been successfully used in diverse environments, including deserts, tropical regions, high altitudes, and Arctic conditions, demonstrating strong adaptability and reliability.

Can FORWARD provide customized drilling solutions?

Yes. FORWARD offers customized rig configurations based on customer needs, including drilling depth, hole diameter, power systems, environmental conditions, and local regulations. Our engineering team works closely with clients to ensure the equipment is well-suited to their specific projects.

How does FORWARD ensure product quality and reliability?

FORWARD applies strict quality control throughout design, manufacturing, and testing. Key components are sourced from internationally recognized suppliers, and each drilling rig undergoes comprehensive factory testing before delivery to ensure stable performance, safety, and long service life.

What after-sales services does FORWARD provide?

FORWARD provides global after-sales support, including technical training, spare parts supply, remote troubleshooting, and on-site service when required. Our service team is committed to fast response times to minimize downtime and support continuous operation.

How can customers obtain technical information or a quotation?

Customers can contact FORWARD via our website, email, or authorized distributors to request technical specifications, project consultation, or quotations. Our sales and technical teams will respond promptly with professional support and detailed information.
